Ref. 084720

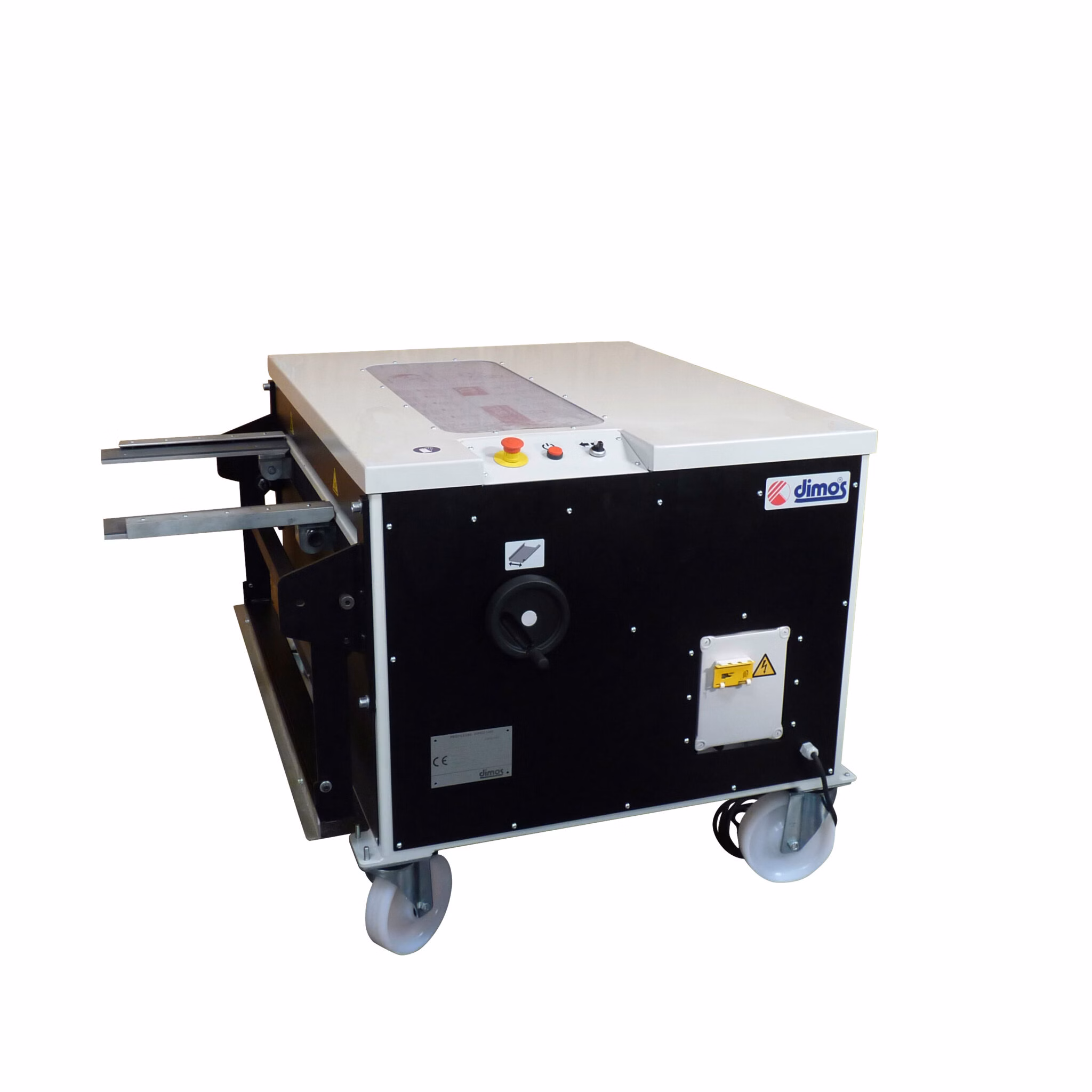

DIPRO P5400-220V Roll Forming Machine
Technical description
Profiling of straight and curved trays. Tool-free setup: automatic roller adjustment. Secures wide and curved trays. Minimum tray depth of 180mm, ideal for cladding. Lifting rings and crossbars for forks. Folding infeed guides. Operator protection thanks to bellows on the infeed and outfeed guides. Complies with Machinery Directive 2006/42/EC.
Also available with a 100V motor
. A 90° male bend option is available upon request.
-
Profiling speed
15 m/min
-
Working width
250 to 800 mm
-
Minimum band length
800 mm
-
Weight Machine
350 kg
-
Dimensions (L x W x H)
1230x1500x1050
-
Steel
0.7 mm
-
Aluminum
0.7 mm
-
Copper
0.6 mm
-
Stainless steel
0.5 mm
-
Zinc
0.8 mm
- Profiling train adaptable to a wide range of materials
- No tools required
- Suitable for construction sites and workshops
- Simplified ordering
- Scalable: manual cross-section cutting before profiling and programmable counter as an option
